CNC Machining

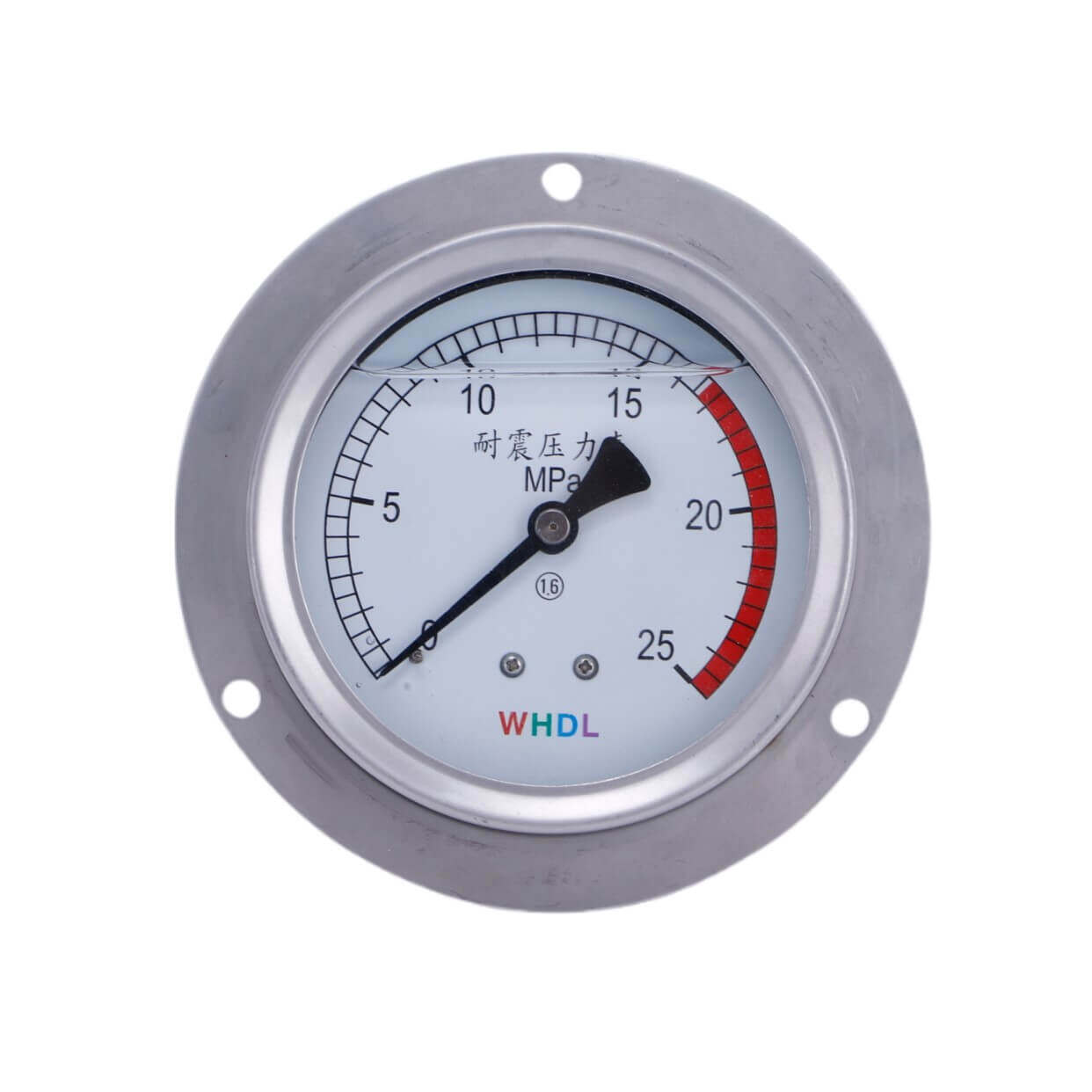

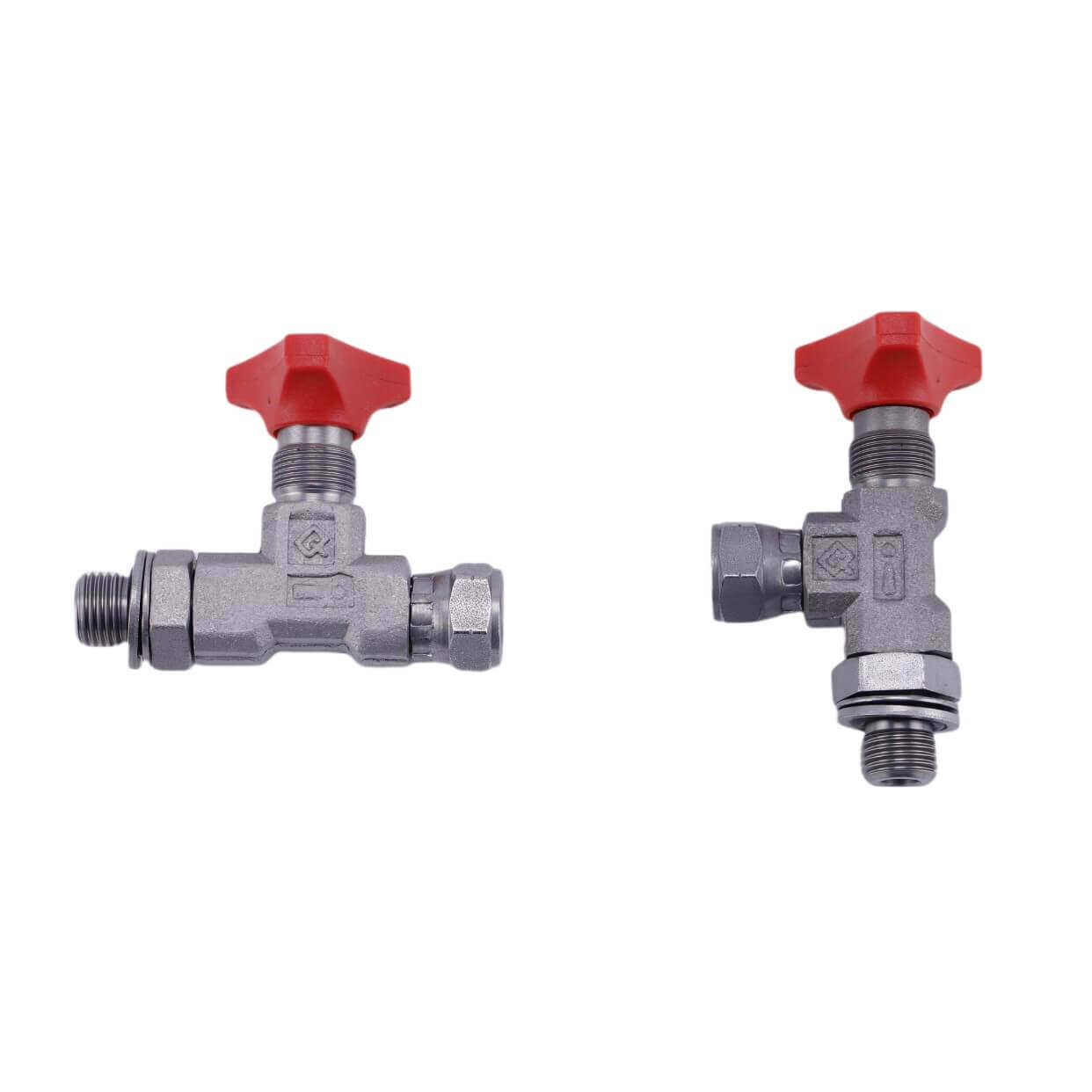

In the hydraulic system, the pressure gauge switch and pressure gauge play a key role. Pressure gauge switch is a small stop valve, used to control the pressure gauge and hydraulic oil circuit on or off. When opened, the pressure oil enters the pressure gauge to display the system pressure; After closing, the pressure gauge can be isolated to avoid damage under system pressure shock, effectively extending the service life. It is easy to operate, compact structure, there are many types of straight through, right Angle and so on, suitable for different installation needs. The pressure gauge is an instrument that visually displays the pressure value of the hydraulic system. Its working principle is based on the deformation of elastic elements under pressure, and the pointer is driven by the transmission mechanism to accurately indicate the pressure value. Common spring tube pressure gauge, diaphragm pressure gauge, etc., with high precision, strong reliability characteristics, for operators to grasp the system pressure in real time, to ensure the safe and stable operation of equipment to provide a key basis.
