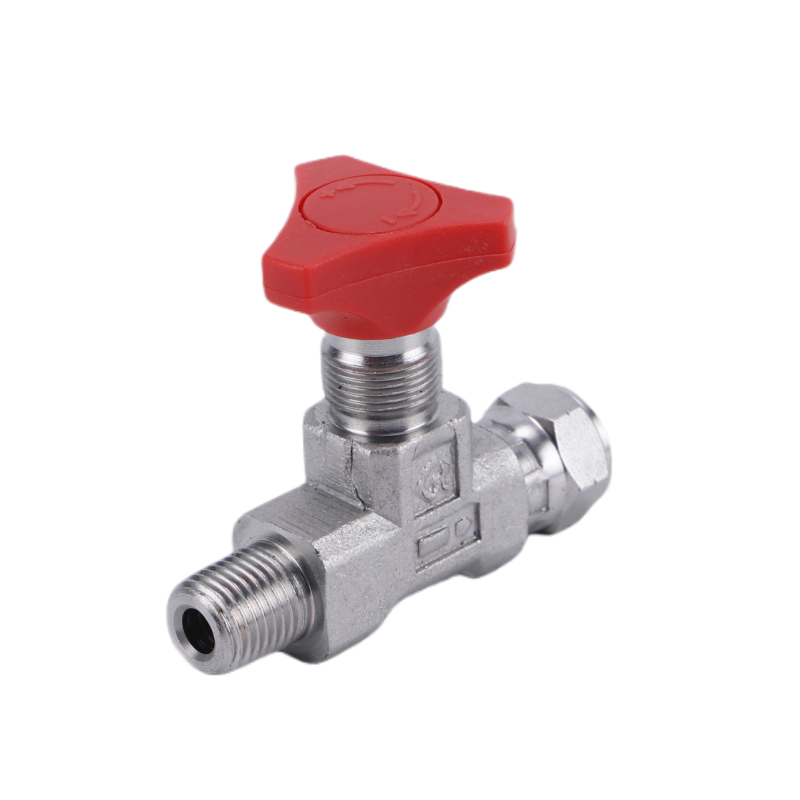

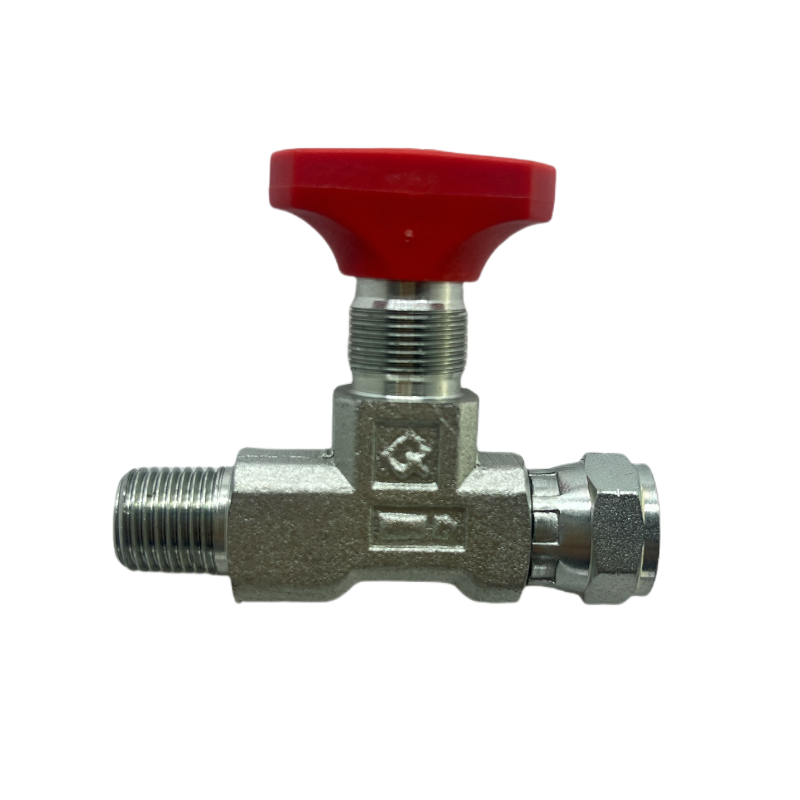

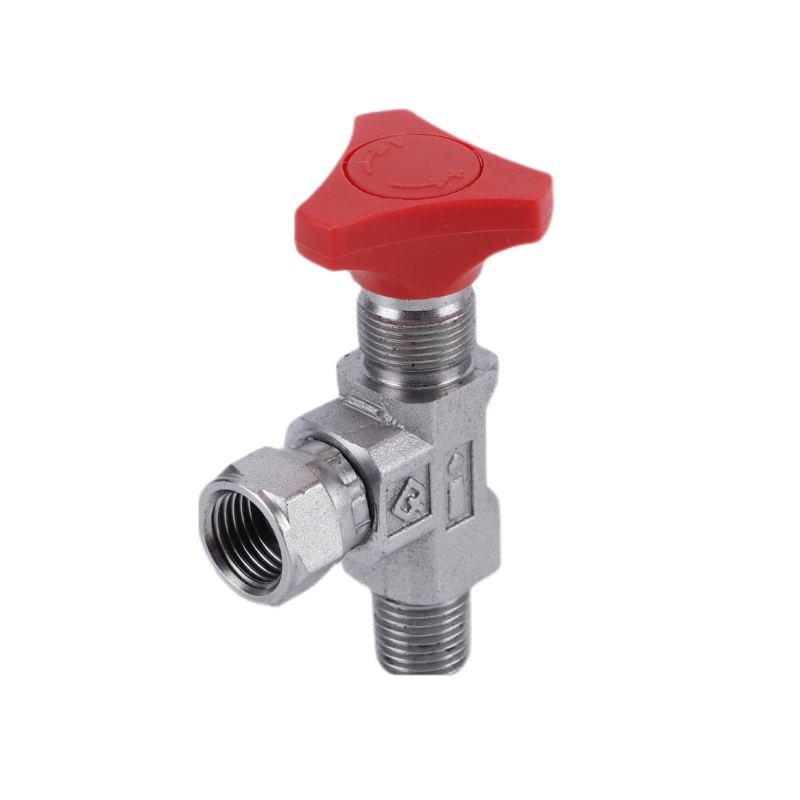

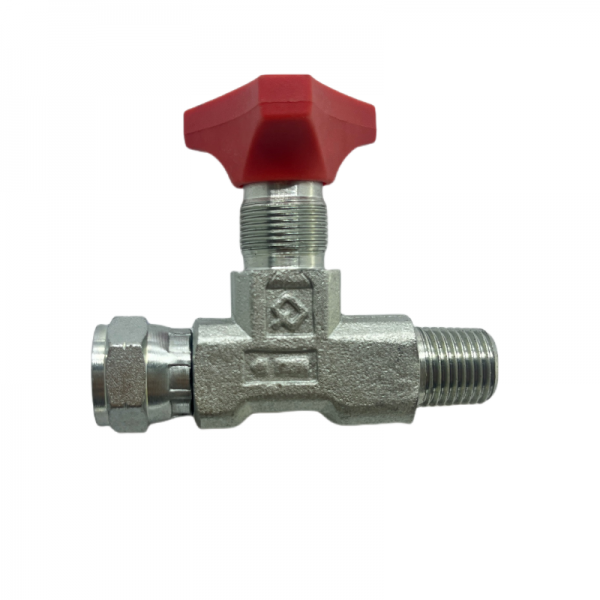

W type PT1/4 pressure gauge throttle valve

Product Description:
Name: Pressure gauge switch/throttle valve
Material: Carbon steel
Product model: W PT1/4, NPT1/4 (W01-90 degrees, W02-180 degrees)
Interface: Universal
Customizable: Yes
The metal part is made of carbon steel or stainless steel, and the product structure is reasonable and the sealing is good. Simple structure and convenient installation.
W-type pressure gauge throttle valve selection description:
01- stands for 90° switch
02- stands for 180° switch
Connector end optional thread G1/4, M14*1.5, PT1/4
Terminal optional thread G1/4 adjustable, G1/4 Ed, inside G1/4, PT1/4, M14*1.5 card 6/ card 8
Terminal connection thread advantage Multiple transfer modes.
Surface treatment: white zinc/zinc-nickel alloy
Working pressure: 630bar
